Medical Headlight

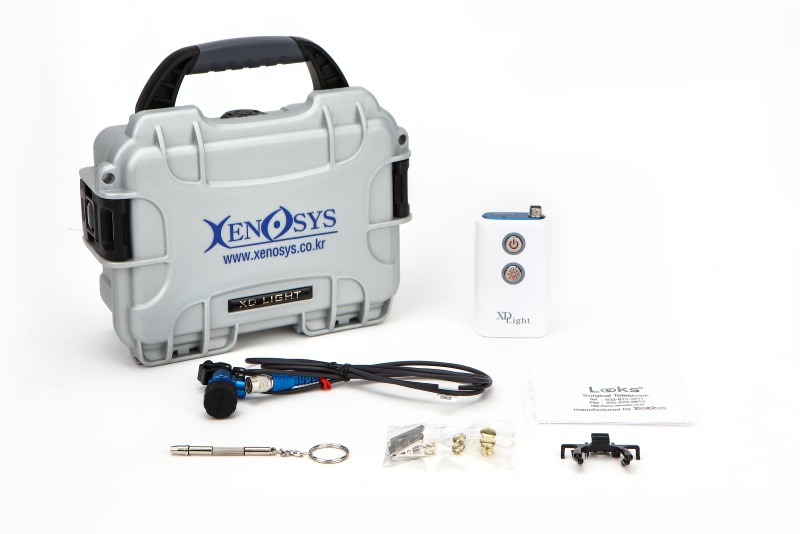

XD Light
Portable LED Headlight System: XD Light is the medical device with lithium-ion battery and LED light source which is suitable for flashing on to watch the wound or surgery spot. As a portable device, it does not need supplementary holder and fiber optic cable. By the help of co-axial & shadow-free illumination, XD Light provides you the excellent color rendering with consistent brightness. This product is the medical device and KFDA approval & registration is described like below table.
Electrical Specification
|
Operating Power |
§DC3.62V |
|
Operating Time |
§About
22 hours (1st step mode: Minimum), §About
11 hours (2nd step mode), §About
7.5 hours (3rd step mode) §About
5.5 hours (4th step mode: Maximum) |
|
Charging Time (Full charge) |
§About 4 hours |
|
Medical Power Supply |
§Input: AC100~240V, 50-60Hz, 0.3A §Output: DC5V |
|
Light Source |
§High Power LED (White
Color) |
|
Imbedded Battery |
§DC3.62V |
LED Illumination
|
Brightness(lx)[±2000 lx]
@ WD400mm |
Type |
DLM82 |
DLM150 |
|
1st step |
9,000 |
3,000 |
|
|
2nd step |
16,000 |
6,000 |
|
|
3rd step |
23,000 |
9,000 |
|
|
4th step |
29,000 |
11,400 |
|
|
Field of View (mm) @WD400mm |
Ø82 |
Ø150 |
|
|
Weight (g) |
57 |
52 |
|
|
Color Temperature, Wavelength Range |
§6000 K, 400 ~
700 nm(Visible) |
||
|
Uniformity |
§More than 80%
@WD400mm |
||
|
LED Operating Power |
§DC3.0 V |
||
|
LED Life Span (Guaranteed Time) |
§50,000 hours |
||
Package External Figures & Weight
|
External Figures |
§W240 x H240 x D100
(mm) |
|
Total Weight |
§ 1.3 kg |
