Medical Headlight

L2SWE

Wireless LED Headlight System: L2SWE is the medical device with lithium-Polymer battery and LED light source which is suitable for flashing on to watch the wound or surgery spot. As it is wireless can be attached to headband or glasses, it does not need long wires and fiber optic cable. By the help of co-axial & shadow-free illumination, L2SWE provides you the excellent color rendering with consistent brightness. The biggest feature of this product is that the size of the irradiation area can be controlled by adjusting the illumination area adjustment knob.
This product is the medical device and KFDA approval & registration is described like below table.

Detail of Specification

A. Electrical Specification

Medical DC Power Supply Operating Power	§Input: AC100-240V, 50-60Hz, 0.3A §Output: DC5V 2.2A
Charger Power	§Input: DC5V 2.2A §Output: DC4.2V 1.0A
Battery Pack	§BTPWL : DC3.7V 620mAh Li-polymer §BTPWS : DC3.7V 380mAh Li-polymer
Operating Time (BTPWS)	§Approx. 5 hours 30 minutes (1^st step mode: Minimum Intensity), §Approx. 2 hours 20 minutes (2^nd step mode), §Approx. 1 hour 15 minutes (3^rd step mode: Maximum Intensity)
Operating Time (BTPWL)	§Approx. 8 hours 30 minutes (1^st step mode: Minimum Intensity), §Approx. 3 hours 50 minutes (2^nd step mode), §Approx. 2 hours 30 minutes (3^rd step mode: Maximum Intensity)
Full Charging Time (BTPWS)	§Approx. 1 hours 50 minutes
Full Charging Time (BTPWL)	§Approx. 2 hours 40 minutes
Light Source	§High Power LED (Warm White Color)

B. LED Illumination

Brightness(lx)[±2000 lx] @ WD400mm	Type	LED Lens Module
	1^st step	4,500
	2^nd step	8,500
	3^rd step	13,000
Field of View (mm) @WD400mm		Ø 10 ~ Ø 82mm
Color Temperature, Wavelength Range		§3500 K, 400 ~ 700 nm(Visible Light)
Uniformity		§More than 80% @WD400mm
LED Life Span (Guaranteed Time)		§50,000 hours

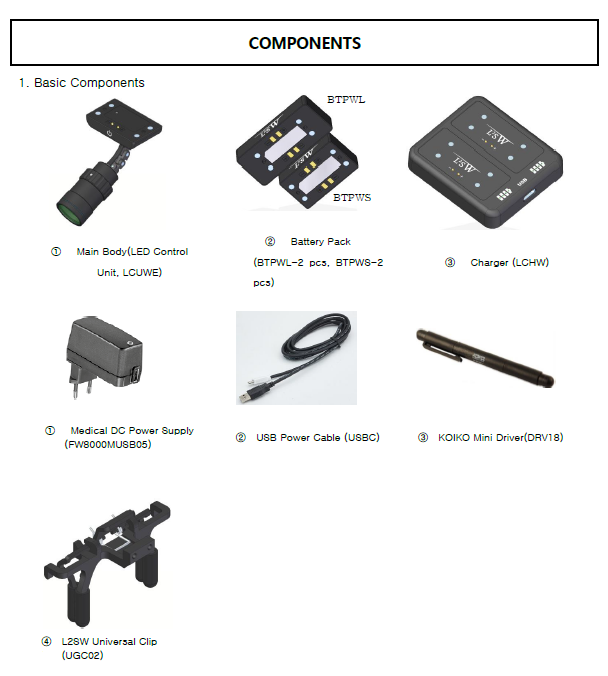

C. Package External Figures & Weight

External Figures	§W228 x H138 x D80 (mm)
Total Weight	§550 g
