Medical Headlight
L2SX5
Portable LED Headlight System: L2SX5 is the medical device with lithium-ion battery and LED light source which is suitable for flashing on to watch the wound or surgery spot. As a portable device, it does not need supplementary holder and fiber optic cable. By the help of co-axial & shadow-free illumination, L2SX5 provides you the excellent color rendering with consistent brightness. This product is the medical device and KFDA approval & registration is described like below table.
Electrical Specification
|
Power Consumption |
§DC3.6V |
||
|
Operating Time[±10%] |
Type |
LLMX582,
LLMX574, LLMX566 |
LLMX566D |
|
1st step |
24h |
12h50m |
|
|
2nd step |
13h |
7h30m |
|
|
3rd step |
10h |
5h |
|
|
4th step |
6h30m |
3h10m |
|
|
Power of Charger |
§Input: DC5V §Output: DC4.2V |
||
|
Power of Medical power supply |
§Input: AC100-240V, 50-60Hz, 0.3A §Output: DC5V |
||
|
Light Source |
§High Power LED (White
Color) |
||
|
Power of Charger |
§Input: DC5V §Output: DC4.2V |
||
LED Illumination
|
Brightness(lx)[±10%]
@ WD400mm |
Type |
LLMX582 |
LLMX574 |
LLMX566 |
LLMX566D |
|
1st step |
12,000 |
14,000 |
18,000 |
36,000 |
|
|
2nd step |
22,000 |
25,000 |
33,000 |
64,000 |
|
|
3rd step |
30,000 |
34,000 |
44,000 |
87,000 |
|
|
4th step |
41,000 |
47,000 |
61,000 |
110,000 |
|
|
Field of View (mm) @WD400mm |
Ø82 |
Ø74 |
Ø66 |
Ø66 |
|
|
LLMX5 Weight (Only Lens Modul-without cable) (g) |
40(13) |
39(12) |
41(14) |
74(30) |
|
|
Color Temperature, Wavelength Range |
§6000 K, 400 -
700 nm (Visible Ray) |
||||
|
Uniformity |
§More than 80% @ WD400mm |
||||
|
LED Life Span (Guaranteed Time) |
§50,000 hours |
||||

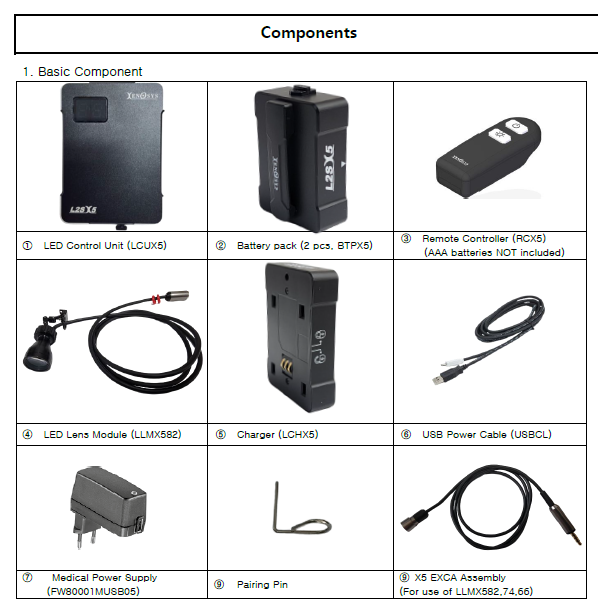

Replacement Component
|
Battery Pack |
§DC3.6V |
|
Power Supply for Medical usage |
§Input: AC100-240V, 50-60Hz, 0.3A §Output: DC5V |

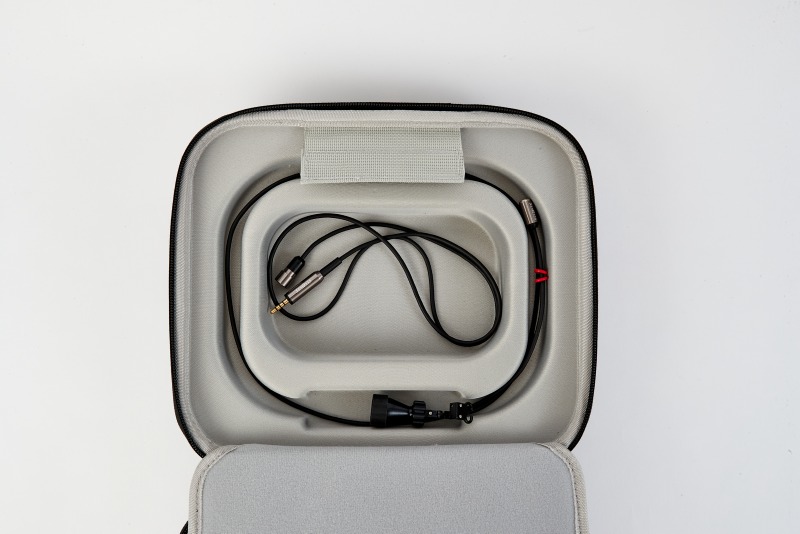

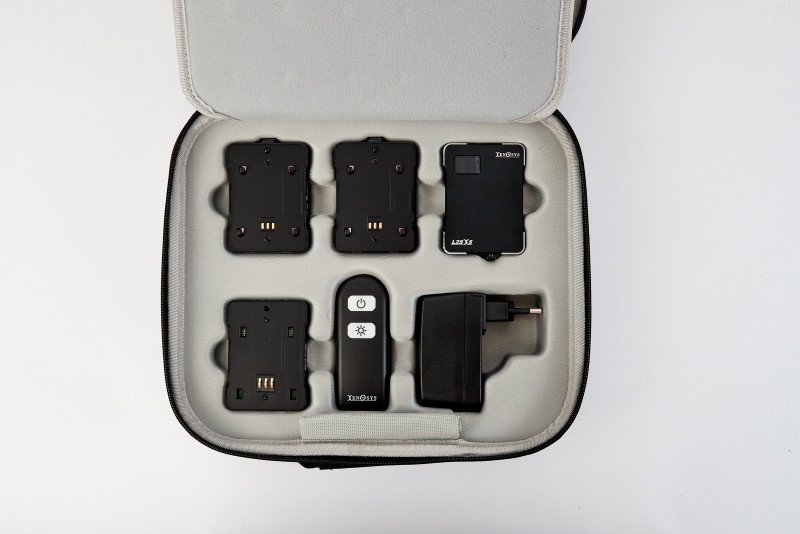

Package External Figures & Weight
|
External Figures |
§W275 x H250 x D110
(mm) |
|
Total Weight |
§ 1.80 kg |
