Medical Camera
LooksCAM2 Wireless Camera System

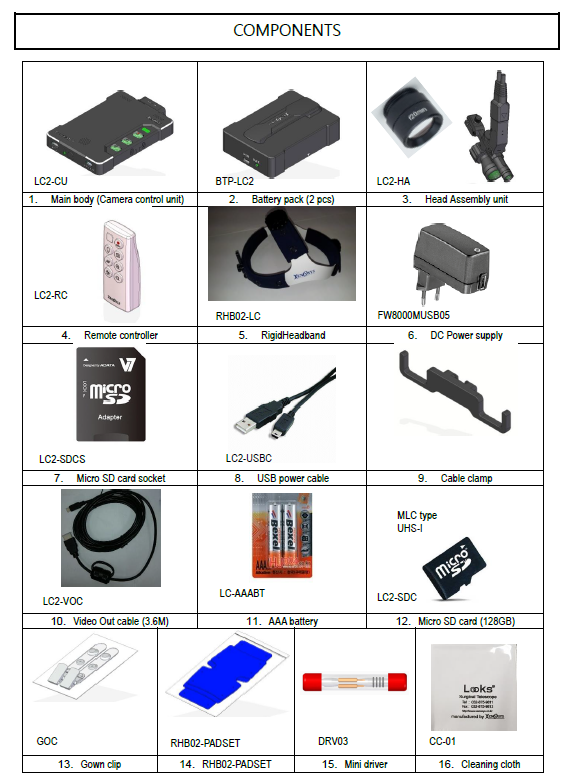

This product is the external medical camera to record patient’s affected area or surgery during the medical treatment by hospital. The basic components consist of the camera optical module, camera head, camera control unit (main body), and LED lens module. There are two options to check the input video through camera head spontaneously. One is to connect VIDEO OUT port of the camera control unit to HDMI port of the monitor. Another is to use wifi setting by monitor or computer screen.
Recorded video file is stored in Micro SD card.
Detailed Specifications
Specifications
|
Rated Input
Voltage |
§DC3.6V |
|
Image Sensor |
§1/3 inch 4.0M
Pixel CMOS |
|
Recording Resolution |
§Full HD
1920*1080p |
|
FOV (Crosswise) |
§f14mm Lens : Ø137mm @ WD 400mm §f20mm Lens : Ø 94mm @ WD 400mm §f12.5mm Lens : Ø 160mm @ WD 400mm (Optional item)
|
|
Recording Frame |
§30fps |
|
Video Quality (Bitrate) |
§CBR type 10 Mbps |
|
WiFi streaming |
§Rec (EIS) + WiFi: 1920*1080/30fps, delay
1.8sec. §Rec (EIS) + WiFi + HDMI: 480*360p / delay
1.8sec |
|
Digital Zoom |
§1.0x 1.5x 2.0x 3.0x |
|
Video Compression |
§H.264 |
|
Audio Codec |
§AAC (Advanced
Audio Coding), 12 KHz |
|
Function Button |
§REC/Snap
shot/LED |
|
Speaker |
§Built-in 8 ohm |
|
Micro SDHC Card |
§128GB Micro SDHC
Card, More than Class 10, MLC Type §File System:
FAT32, File Allocation Size: 32KB §File Length: 30
minutes (About 2.5GB) |
|
Operating Temperature / Storage Temperature |
§6℃ - 40℃ / 10℃ - 40℃ |
|
Consecutive Recording Time |
§4 hours 20
minutes §LED 2 step: 6
hours 20 minutes §LED 1 step: 7
hours 20 minutes |
|
Full Charging Time (Capacity) |
§6 hours (10.50
Ah) |
|
Input power of DC POWER SUPPLY |
§100-240 V~, 50-60
Hz, 0.3A |
|
Output power of DC POWER SUPPLY |
§5.0V |
|
Battery Input Power |
§5.0V |
LED Illumination
|
Brightness & Current Consumption |
STEP |
lx @WD400mm |
|||
|
LLM82 |
LLM74 |
LLM66 |
|||
|
1st |
19,000 |
21,000 |
29,000 |
||
|
2nd |
30,000 |
32,000 |
44,000 |
||
|
3rd |
39,00 |
43,000 |
59,000 |
||
|
4TH |
OFF |
OFF |
OFF |
||
|
Field of View Size (mm) @WD400mm |
Ø82 (Standard) |
||||
|
Weight(g) |
25 g |
||||
|
Color Temperature, Spectrum |
§6000 K, 400 -
700 nm(Visible Ray) |
||||
|
Uniformity |
§More than 80%
@WD400mm |
||||
|
LED Operating Power |
§2W (max.) |
||||
|
LED Life Time (Guaranteed) |
§50,000 hours |
||||
|
LED Source |
§High power LED
(White color) |
||||
Replacement Components
|
Battery Pack |
§DC3.6V |
|
DC POWER SUPPLY |
§Input: 100-240 V~, 50/60 Hz, 0.3A §Output: DC5.0V |
Dimension & Total Weight of Package
|
Dimension |
§W 410 x H 320 x
T 180 (mm) |
|
Total Weight |
§3.80 kg (With
total outer package 4.30 kg) |
2. Optional item(Part for
additional purchase)
|
H160mm@WD400mm |
|
|
|
|
Wide-angle lens(f12.5mm) |
1.
|
|
